B72510E0250K062 | TDK (EPCOS)
Varistor, SMD 0805, VV 39 V, 80 A, 31 V (DC), 25 V (AC), ±10 %, 0.005 VA (AC), 0.3 J, B72510E0250K062
Unit Price (€ / pc.)
0.7378 € *
Available: 4,547 pcs.
Leadtime: 1 Week **
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.4641 €
50 pcs.
0.3332 €
250 pcs.
0.2785 €
1000 pcs.
0.2392 €
*incl. VAT plus shipping costs
**Subject to prior sale

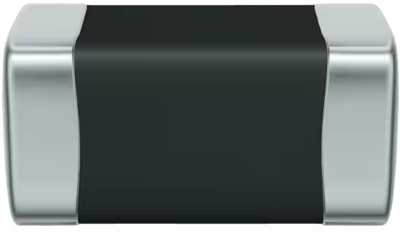

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.
Chip package, molded, good soldering properties, low-inductance

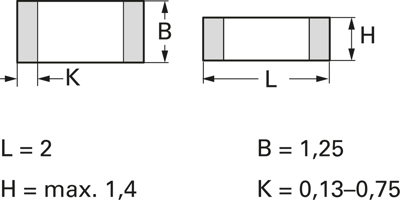

Size 0805, type B72510.
Technical specifications
| Rated voltage (DC) | 31 V | |
| Varistor Voltage Type | 39 V | |
| Energy absorption | 0.3 J | |
| Rated voltage (AC) | 25 V | |
| Design | SMD 0805 | |
| min. operating temperature | -55 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| max. Surge current, transient (8/20 µs) | 80 A | |
| Standard number | UL, IEC, CECC | |
| Power dissipation | 0.005 W |
Download
Logistics
| Country of origin | HR |
| Customs tariff number | 85332900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
