B72510T0140K062 | TDK (EPCOS)

Name: Varistor, SMD 0805, VV 22 V, 120 A, 18 V (DC), 14 V (AC), ±10 %, 0.005 VA (AC), 0.3 J, B72510T0140K062
Brand: TDK (EPCOS)
SKU: 82E4814
Availability: InStock

Varistor, SMD 0805, VV 22 V, 120 A, 18 V (DC), 14 V (AC), ±10 %, 0.005 VA (AC), 0.3 J, B72510T0140K062

Order No.: 82E4814

EAN: 4099879989963

MPN:

B72510T0140K062

B72510T0140K62

Series: B72510

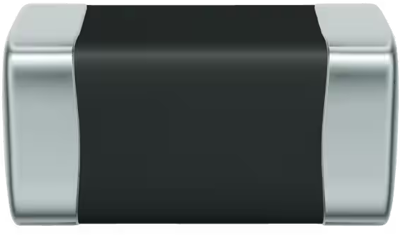

B72510T0140K062 TDK (EPCOS) Varistors Image 1

B72510T0140K062 TDK (EPCOS) Varistors Image 2

Image may differ

Key Specification:

Design SMD 0805

Varistor Voltage Type 22 V

max. Surge current, transient (8/20 Âµs) 120 A

Rated voltage (DC) 18 V

Rated voltage (AC) 14 V

Show variants: 6

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

0.2332 € *

Standard delivery time from the manufacturer is: 13 Weeks

Total Price:

1,399.44 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD metal oxide varistors (VDRs), type TDK/Epcos B725.

Chip package, molded, good soldering properties, low-inductance

Size 0805, type B72510.

Technical specifications

Filter	Property	Value
	Design	SMD 0805
	Varistor Voltage Type	22 V
	max. Surge current, transient (8/20 Âµs)	120 A
	Rated voltage (DC)	18 V
	Rated voltage (AC)	14 V
	Tolerance	±10 %
	Power dissipation	0.005 W
	Energy absorption	0.3 J
	min. operating temperature	-55 °C
	max. operating temperature	125 °C
	Standard number	UL, IEC, CECC
