B72205S0250K101 | TDK (EPCOS)
Varistor, radial, VV 39 V, 100 A, 31 V (DC), 25 V (AC), ±10 %, 0.01 VA (AC), 0.7 J, B72205S0250K101
Unit Price (€ / pc.)
0.6664 € *
Available: 1,494 pcs.
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
10 pcs.
0.4165 €
50 pcs.
0.2939 €
250 pcs.
0.2451 €
1000 pcs.
0.2094 €
*incl. VAT plus shipping costs
Subject to prior sale

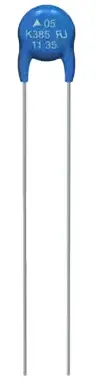

Metal oxide varistors (VDRs), type TDK/Epcos S05 B72205..K101.
Disk version
Technical specifications
| Design | radial | |
| Varistor Voltage Type | 39 V | |
| max. Surge current, transient (8/20 µs) | 100 A | |
| Rated voltage (DC) | 31 V | |
| Rated voltage (AC) | 25 V | |
| Tolerance | ±10 % | |
| Power dissipation | 0.01 W | |
| Energy absorption | 0.7 J | |
| Grid | 5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Standard number | UL, CSA, SEV, VDE, CECC, CQC, IEC |
Download
Logistics
| Customs tariff number | 85332100 |
| Original Packaging | Bulk with 1,000 pieces |
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
