NSYCVF165M115PF | Schneider Electric

ClimaSys forced vent. IP54, 165m3/h, 115V, with outlet grille and filter G2

Order No.: 04P0372
EAN: 4099889485059
MPN:
NSYCVF165M115PF
Series: Climasys CV
Schneider Electric
NSYCVF165M115PF Schneider Electric Panel-Mount Fans
Image may differ
Unit Price (€ / pc.)
133.0658 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
133.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
133.0658 €

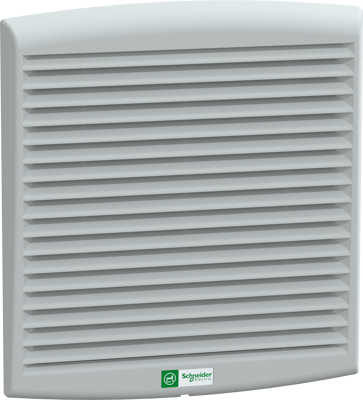

Fan, NSYCVF165M115PF, Schneider Electric

This product is a fan designed to provide reliable and efficient cooling. It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color. The fan has a ball bearing type and a maximum pressure of 50 Pa. It has a power range of 15,5 W 50 Hz and 14,4 W 60 Hz, and a free flow rate of 165 m3/h at 50 Hz and 193 m3/h at 60 Hz. It can be used in ambient air temperatures ranging from -20 to 60°C. It has a Faston connector and comes with a filter, an outlet grille, two protective grilles on the front and rear surfaces, and a power cord. It has an IP54 degree of protection and a noise level of 50-51 dB. The cut-out dimensions of the fan are 223 x 223 mm. This fan also comes with an anti-insect filter included.

Features

  • Reliable and efficient cooling with a ball bearing type fan
  • Noise level between 50-51 dB for quiet operation
  • Comes with a filter, outlet grille, and two protective grilles
  • Faston connector for easy installation
Technical specifications
Width 248 mm
Height 268 mm
Type of bearing ball bearing
Rated voltage 115 V
Sound pressure level 51 db
Degree of protection (IP) IP54
Depth 104 mm
Volume flow 165 m³/h
Logistics
Country of origin FR
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
