XB4BS8446 | Schneider Electric

Emergency stop switching off, XB4BS8446, Schneider Electric

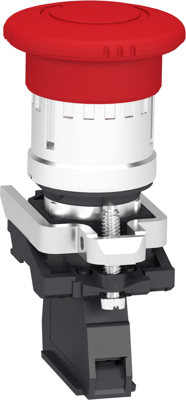

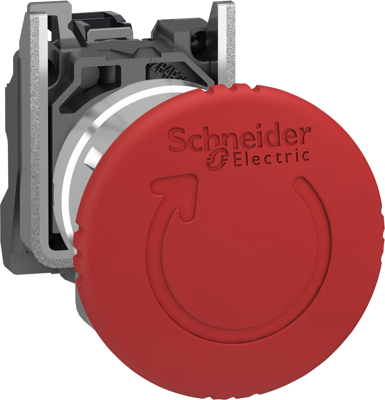

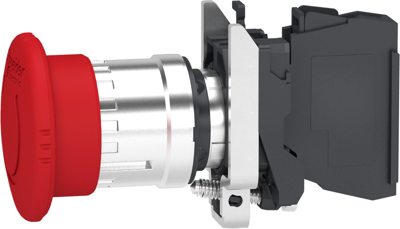

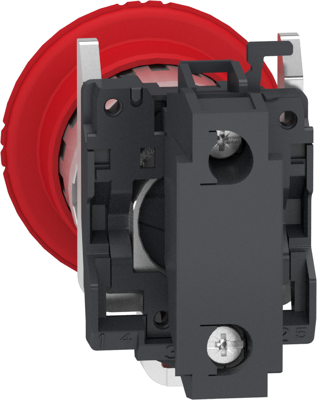

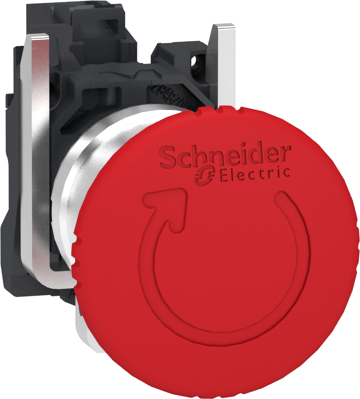

This product is part of the Harmony XB4 range, an offer of Ø 22 mm metal pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a chromium plated metal bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22 mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use.

Features

• Wide modular range to suit machines and operator safety.
• Designed to fit in a 22 mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
• Ergonomic design for emergency actuation in several environments
• Large set of accessories : circular legends, illuminated legend rings for harsh environments.
• Wide range of operating temperatures from -40°C to 70°C
