XB4BS84441 | Schneider Electric

Emergency stop, rotary release, mounting Ø  22 mm, unlit, 1 Form A (N/O) + 2 Form B (N/C), XB4BS84441

Order No.: 05P3159
EAN: 3389110966244
MPN:
XB4BS84441
Series: Harmony XB4
XB4BS84441 Schneider Electric Emergency Stop
Image may differ
Unit Price (€ / pc.)
39.7222 € *
Available in 3 Days: 107 pcs. - if ordered today
Total Price:
39.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
39.7222 €

Emergency stop pushbutton, XB4BS84441, SCHNEIDER

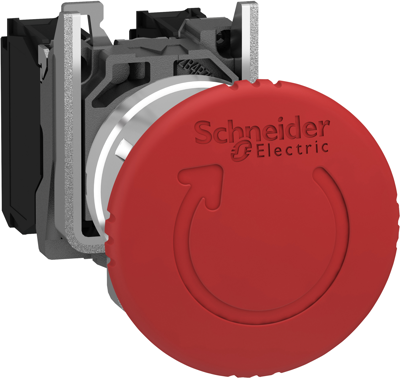

The XB4BS84441 is an emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Features

  • Wide modular range to suit machines and operator safety
  • Ergonomic design for emergency actuation in several environments
Technical specifications
Filter Property Value
Installation diameter 22 mm
Type of mounting panel mounting
Latching switching function 1 Form A (N/O) + 2 Form B (N/C)
Degree of protection (IP) IP66/IP69K
Type of labeling red
Resetting rotary release
Height 47 mm
Contact function latching
illuminated No
Collar shape of the front frame round
Logistics
Property Value
Country of origin CZ
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
