XB4BS8442 | Schneider Electric
Emergency stop, rotary release, mounting Ø 22 mm, unlit, 1 Form B (N/C), XB4BS8442
Unit Price (€ / pc.)
30.4759 € *
Available: 286 pcs.
Available in 3 Days: 1,212 pcs. - if ordered today
Total Price:
30.48 € *
Price list
Quantity
Price per unit*
1 pcs.
30.4759 €
5 pcs.
29.1431 €
10 pcs.
27.5485 €
15 pcs.
26.1205 €
*incl. VAT plus shipping costs
Subject to prior sale

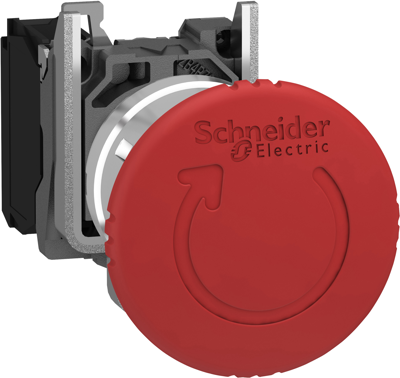

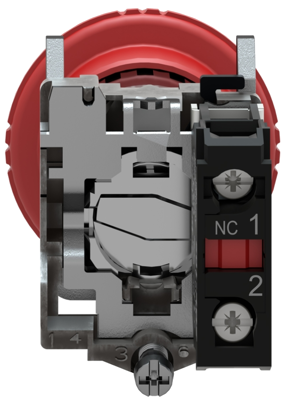

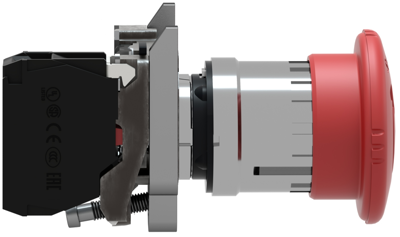

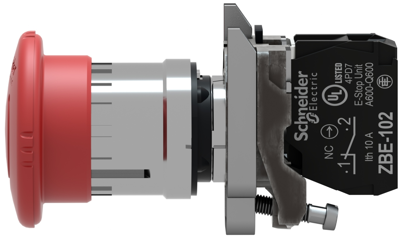

Emergency stop pushbutton, XB4BS8442, SCHNEIDER
The XB4BS8442 is an emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Features
- Wide modular range to suit machines and operator safety
- Ergonomic design for emergency actuation in several environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | latching | |
| Type of mounting | panel mounting | |
| Installation diameter | 22 mm | |
| Height | 47 mm | |
| Degree of protection (IP) | IP66/IP69K | |
| Type of labeling | red | |
| Collar shape of the front frame | round | |
| illuminated | No | |
| Resetting | rotary release | |
| Latching switching function | 1 Form B (N/C) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
