2980610 | Phoenix Contact
Solid state relay, 16.8-30 VDC, immediate switching, 3-33 VDC, 3 A, DIN rail, 2980610
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
41.4715 € *
Available in 5 Days: 152 pcs. - if ordered today
Total Price:
41.47 € *
Price list
Quantity
Price per unit*
1 pcs.
41.4715 €
5 pcs.
39.6627 €
10 pcs.
38.0086 €
25 pcs.
36.4973 €
*incl. VAT plus shipping costs
Subject to prior sale

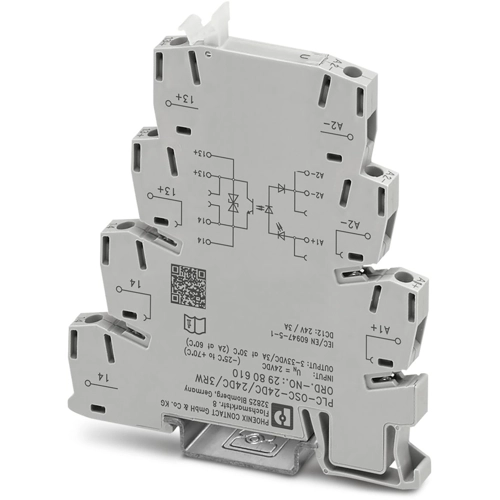

Solid-state relay module, 2980610, Phoenix Contact
PLC-INTERFACE for railway applications, consisting of basic terminal block with screw connection and integrated miniature solid-state relay, range: 0.7 x UN to 1.25 x UN, temperature range: -25°C to +70°C, 1 N/O contact, input: 24 V DC, output: 3 - 33 V DC/3 A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| Voltage | 3-33 VDC | |
| Control Voltage | 16.8-30 VDC | |
| Switching Mode | immediate switching | |
| Assembly | DIN rail | |
| LED display | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
