3210258 | Phoenix Contact
Knife disconnect terminal, push-in connection, 0.34-4.0 mm², 4 pole, 16 A, 6 kV, gray, 3210258
Unit Price (€ / pc.)
10.5315 € *
Available in 5 Days: 5,650 pcs. - if ordered today
Total Price:
10.53 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5315 €
10 pcs.
9.4724 €
50 pcs.
8.8774 €
100 pcs.
8.3657 €
*incl. VAT plus shipping costs
Subject to prior sale

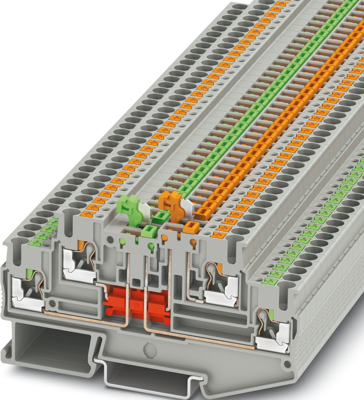

Knife-disconnect terminal block, 3210258, Phoenix Contact
Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 16 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Features
- The compact design and front connection enable wiring in a confined space
- Convenient separation of circuits, thanks to lever-type disconnect knife
- Clear identification of the disconnect point, thanks to color highlighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | knife disconnect terminal | |
| Pin number | 4 pole | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.34-4.0 mm² | |
| Rated surge voltage | 6 kV | |
| Height | 92.4 mm | |
| Width | 5.2 mm | |
| Length | 45.8 mm | |
| Connection | push-in connection | |
| Rated current | 16 A | |
| Colour | gray | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 26 to 12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
