1805164 | Phoenix Contact

PV connection cable, 130 mm, plug, 1 pole straight to open end, 4.0 mm², 1805164

Order No.: 64P4780
EAN: 4046356671446
MPN:
1805164
Series: SUNCLIX

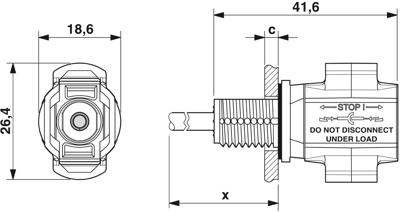

1805164 Phoenix Contact Pre-assembled Connector Systems Image 1

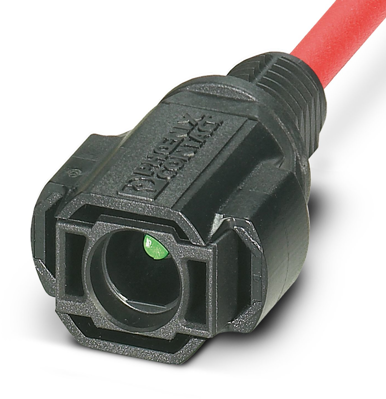

1805164 Phoenix Contact Pre-assembled Connector Systems Image 2

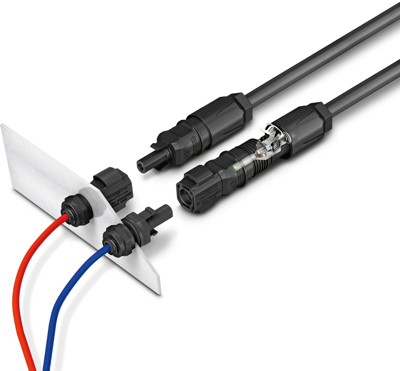

1805164 Phoenix Contact Pre-assembled Connector Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.2122 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.21 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2122 €
10 pcs.
4.7481 €
50 pcs.
4.3197 €
100 pcs.
3.9270 €
*incl. VAT plus shipping costs
Subject to prior sale

PV connection cable, 1805164, Phoenix Contact

Device connector front mounting, Range of articles: SUNCLIX, color: black, number of positions: 1, min. conductor cross section: 4 mm², rated current: 35 A, Connection method: Crimp, Contact connection type: Pin, cable length: 130.

Technical specifications
Filter Property Value
Connection 1 design straight
Connection (1) plug, 1 pole
Cable cross-section 4.0 mm²
Version PV connection cable
Connection (2) open end
Cable length 130 mm
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
