1805148 | Phoenix Contact

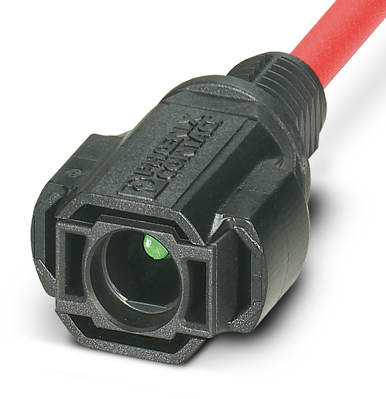

PV connection cable, 130 mm, plug, 1 pole straight to open end, 2.5 mm², 1805148
Unit Price (€ / pc.)
5.0694 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.07 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0694 €
10 pcs.
4.6172 €
50 pcs.
4.2007 €
100 pcs.
3.8199 €
*incl. VAT plus shipping costs
Subject to prior sale
PV connection cable, 1805148, Phoenix Contact
Device connector front mounting, Range of articles: SUNCLIX, color: black, number of positions: 1, min. conductor cross section: 2.5 mm², rated voltage: 1000 V DC, rated current: 27 A, Connection method: Crimp, Contact connection type: Pin, cable length: 130.
Technical specifications
| Cable length | 130 mm | |
| Connection 1 design | straight | |
| Cable cross-section | 2.5 mm² | |
| Connection (1) | plug, 1 pole | |
| Version | PV connection cable | |
| Connection (2) | open end |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
