1411415 | Phoenix Contact

PHOENIX CO 1411415

Order No.: 62P3602
EAN: 4046356932172
MPN:
1411415
QPD T 4PE6,0 3X12-20 BK
Series: QPD
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
79.373 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
79.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
79.373 €

T distributor, 1411415, Phoenix Contact

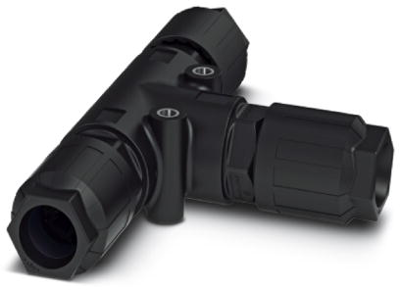

QUICKON T-distributor, Black, 4+PE-pole, 2.5-6.0 mm²/690 V/40 A, for cable diameter of 12-20 mm, with three QUICKON nuts

Features

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
  • Flexible and compact - by connecting connections internally
Technical specifications
Connection IDC connection
Version T-adapter
Design T-shape
Colour black
Cable diameter 12 to 20 mm
Cable cross-section 2.5-6.0 mm²
Rated voltage IEC 690 V
Rated voltage UL/CSA 600 V
Rated current IEC 40 A
Rated current UL/CSA 20 A
Pin number 4 pole
Degree of protection (IP) IP66/IP68/IP69K
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
