1405404 | Phoenix Contact
PHOENIX CO 1405404
Order No.: 62P3593
EAN: 4046356776110
MPN:
1405404
QPD T 4PE 2X9-16 BK
Unit Price (€ / pc.)
62.3322 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
T distributor, 1405404, Phoenix Contact

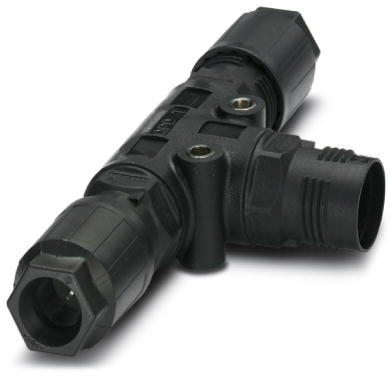

QUICKON T-distributor, Black, 4+PE-pole, 1.0-2.5 mm²/690 V/20 A, for cable diameter of 9-16 mm, with two QUICKON nuts
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Flexible and compact - by connecting connections internally
Technical specifications
| Connection | IDC connection | |
| Version | T-adapter | |
| Design | T-shape | |
| Colour | black | |
| Cable diameter | 9 to 16 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Rated voltage IEC | 690 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 20 A | |
| Rated current UL/CSA | 10 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
