1405401 | Phoenix Contact
PHOENIX CO 1405401
Order No.: 62P3594
EAN: 4046356776080
MPN:
1405401
QPD T 4PE 3X6-11 BK
Unit Price (€ / pc.)
64.4504 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

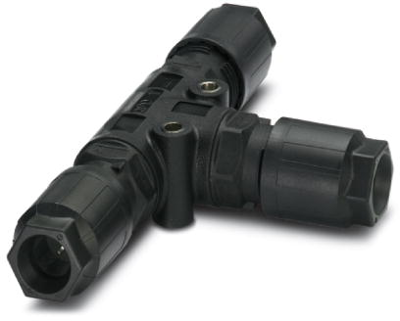

T distributor, 1405401, Phoenix Contact
T distributor, QUICKON connection, Number of positions: 4+PE, 1-2.5 mm², 690 V, 20 A, Black, With three QUICKON nuts, External cable diameter: 6-11 mm
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Flexible and compact - by connecting connections internally
Technical specifications
| Connection | IDC connection | |
| Version | T-adapter | |
| Design | T-shape | |
| Colour | gray | |
| Cable diameter | 6 to 11 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Rated voltage IEC | 690 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 20 A | |
| Rated current UL/CSA | 10 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
