126268 | PEPPERL+FUCHS
Diffuse mode sensor, 0.2-2.5 m, relay, 18-28 VAC/12-30 VDC, screw connection, IP52, 126268
Order No.: 28G7421
EAN: 4050143012909
MPN:
126268
AIR20-8-H-2200/25/38a
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
294.4060 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
294.41 € *
Price list
Quantity
Price per unit*
1 pcs.
294.4060 €
2 pcs.
287.4802 €
*incl. VAT plus shipping costs
Subject to prior sale

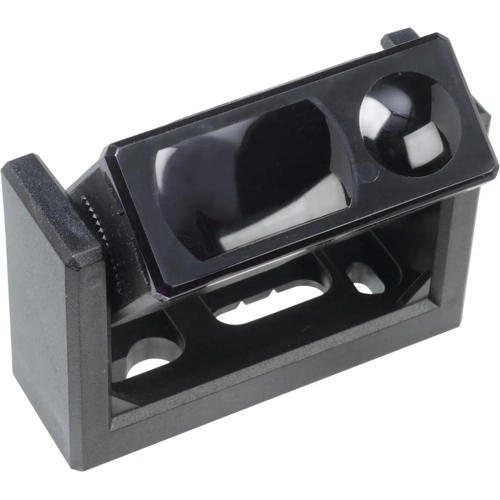

Active infrared scanner, AIR20-8-H-2200/25/38a, PEPPERL+FUCHS
Single-beam active infrared scanner, background suppression, max. installation height 2.2 m, black housing, relay contact output, terminal block.
Features
- Single-beam diffuse mode sensor with background suppression
- Can be used to secure closing edges or as an opening impulse sensor on automatic doors
- Can also be used as door handle monitor on revolving doors
- Narrow, precise long range light beam
- Suitable for moving or stationary mounting
- Not sensitive to ambient light
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | diffuse mode sensor | |
| Version | infrared | |
| Detecting distance | 0.2-2.5 m | |
| Output | relay | |
| Connection | screw connection | |
| Voltage | 18-28 VAC/12-30 VDC | |
| Power supply | 50 mA | |
| Activation time | 50 ms | |
| Switching logic | light ON | |
| Degree of protection (IP) | IP52 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
