52100313 | LAPP
Extension piece, M40 to M50, 55 mm, light gray, 52100313
Order No.: 33P6711
EAN: 4056158596359
MPN:
52100313
SKINDICHT EKU-M 40X1,5/50X1,5 BK
Series: SKINDICHT EKU-M
Unit Price (€ / pc.)
15.0892 € *
Standard delivery time from the manufacturer is: 6 Weeks

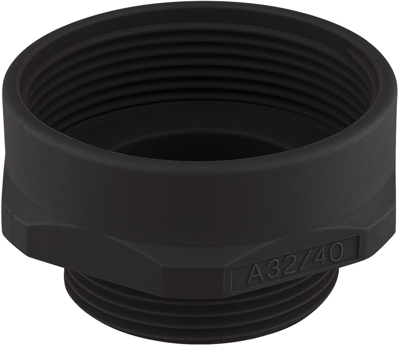

Extension piece, 52100313, LAPP
The 52100313 metric cable gland accessories for cable glands with larger connection threads than the existing threaded holes.
Features
- Assembling with a wrench
- Supporting surface for spanner means scratches on the housing are avoided
Applications
- Machines
- Devices
- Housings
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Product type | extension piece | |
| max. operating temperature | 100 °C | |
| Thread size | M40 to M50 | |
| min. operating temperature | -40 °C | |
| Colour | light gray | |
| spanner size | 55 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
