SBC-BUCK03 | joy-iT
DC converter, 6-40 VDC, 160 W, 1 output, 0-32 VDC, SBC-BUCK03
Order No.: 73S3036
EAN: 4250236824031
MPN:
SBC-BUCK03
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
16.065 € *
Standard delivery time from the manufacturer is: 1 Week

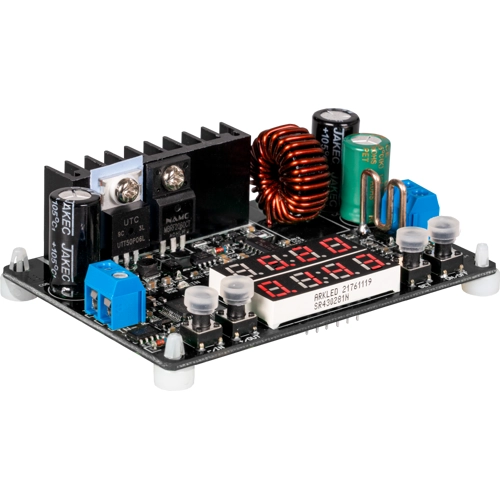

Voltage converter, SBC-BUCK03, joy-iT

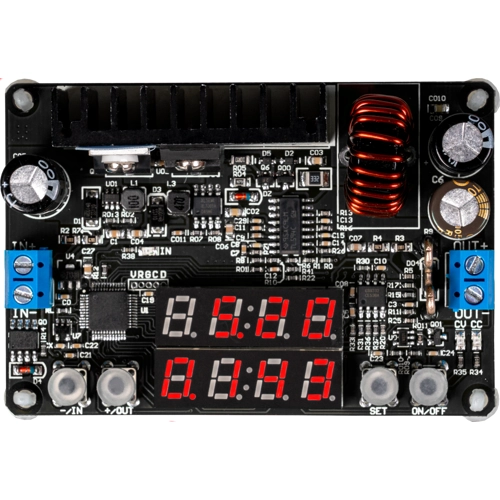

This voltage converter module can convert input voltages of 6 - 40 V (DC) down to an output voltage of 0 - 32 V (DC). The segment displays can show the input and output voltage as well as the output current. The module can be used in constant voltage or constant current mode.
Features
- Current and voltage display on the module, constant voltage and constant current operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 5 A | |
| Output voltage DC | 0-32 VDC | |
| Input voltage AC | 6-40 VDC | |
| Power | 160 W | |
| Length | 85 mm | |
| Width | 58 mm | |
| Height | 26 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
