SBC-BUCK01 | joy-iT
DC converter, 4-35 VDC, 15 W, 1 output, 3-34 VDC, SBC-BUCK01
Order No.: 73S3040
EAN: 4250236823706
MPN:
SBC-BUCK01
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.831 € *
Standard delivery time from the manufacturer is: 1 Week
Voltage converter, SBC-BUCK01, joy-iT

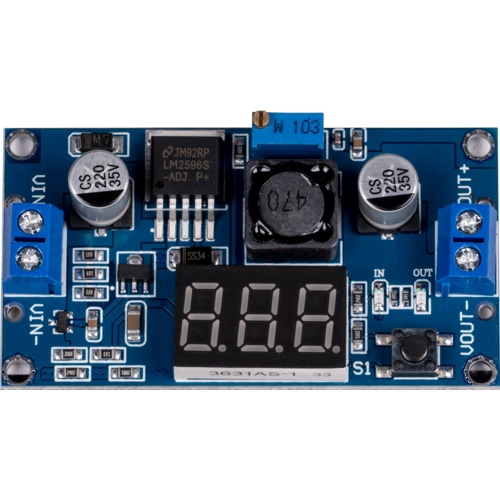

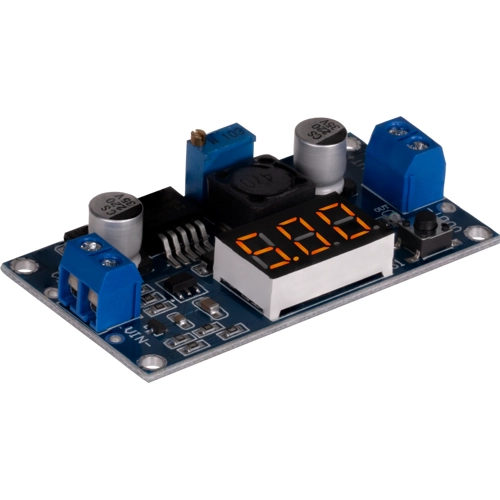

This is a voltage converter based on the DC-DC module LM2596S. The voltage can be adjusted by means of the potentiometer with an accuracy of ± 0.1 V (DC). The integrated segment display can additionally be switched between the input and the output voltage via the knob.
Features
- Adjustment via potentiometer
- Control via Segment display
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2 A | |
| Output voltage DC | 3-34 VDC | |
| Input voltage AC | 4-35 VDC | |
| Power | 15 W | |
| Length | 67 mm | |
| Width | 37 mm | |
| Height | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
