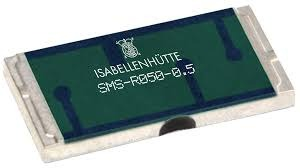

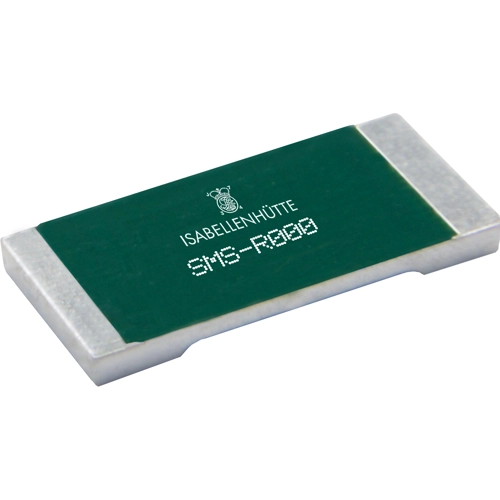

SMS-R039-1.0 | Isabellenhütte
Resistor, metal foil, SMD 2512 (6330), 39 mΩ, 3 W, ±1 %, SMS-R039-1.0
Unit Price (€ / pc.)
2.8084 € *
Available: 885 pcs.
Next delivery: 1,000 pcs. on 2025-11-28
Total Price:
2.81 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8084 €
25 pcs.
2.3919 €
100 pcs.
2.2134 €
250 pcs.
2.0944 €
1000 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale
Current Sense Resistor, SMS-R039-1.0, Isabellenhütte
Features
- Resistance: 39 mOhm
- Tolerance: 1%
- Temperature coefficient: <50ppm/K

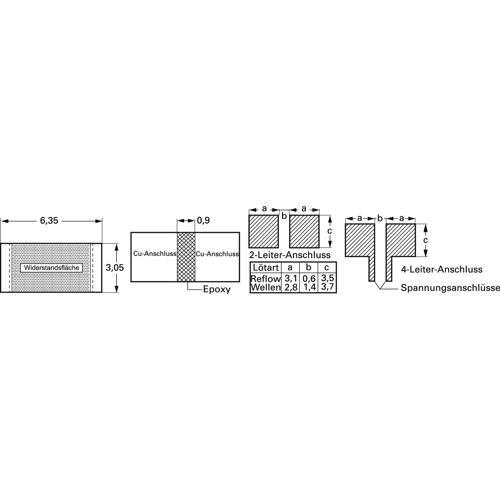

Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 39 mΩ | |
| max. operating temperature | 170 °C | |
| Length | 6.35 mm | |
| min. operating temperature | -65 °C | |
| Height | 0.8 mm | |
| Technology | metal foil | |
| Width | 3 mm | |
| Design | SMD 2512 (6330) | |
| Power | 3 W | |
| Temperature coefficient | ±50 ppm/K | |
| Tolerance | ±1 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
