IF5815 | IFM electronic
Inductive sensor, PNP, flush mounting M12, flush, 1 Form A (N/O), 30 V (DC), 200 mA, IF5815
Order No.: 82P5330
EAN: 4021179098755
MPN:
IF5815
Unit Price (€ / pc.)
104.6129 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
104.61 € *
Price list
Quantity
Price per unit*
1 pcs.
104.6129 €
3 pcs.
101.7093 €
5 pcs.
98.9842 €
*incl. VAT plus shipping costs
Subject to prior sale

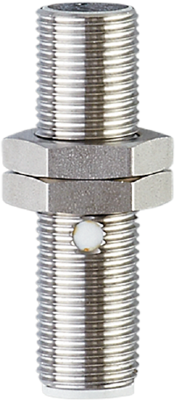

Inductive sensor, IF5815, IFM electronic
Features
- Permanently legible laser type label
- For a precise position detection on machines
- Clearly visible indication of the switching status
- Robust metal housing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
| Detecting distance | 2 mm | |
| Degree of protection (IP) | IP67 | |
| Assembly | flush mounting M12, flush | |
| switching current | 200 mA | |
| Length | 45 mm | |
| Product type | inductive sensor | |
| Version | PNP | |
| Switching Voltage (DC) | 30 V | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
