09380122701 | Harting

Socket contact insert, 24B, 12 pole, equipped, screw connection, with PE contact, 09380122701

Order No.: 42F1976
EAN: 4099889769777
MPN:
09380122701
09 38 012 2701
Series: Han Com

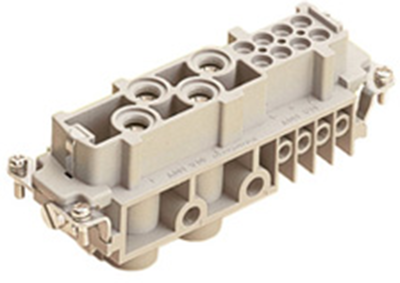

09380122701 Harting Contact Inserts Image 1
09380122701 Harting Contact Inserts Image 2
Image may differ
Unit Price (€ / pc.)
64.4147 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
64.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
64.4147 €

Contact insert, 09380122701, Harting

Insert, Screw termination, Female, Polyamide (PA), RAL 7032 (pebble grey), Rated current: ‌80 A, Size: 24 B, Contacts: 12, Conductor cross-section: 1.5 - 16 mm², 0.5 - 2.5 mm², Copper alloy, Silver plated

Technical specifications
Filter Property Value
Additional parts equipped
Version socket insert
Contact connection screw connection
Shell size 24B
PE contact Yes
Pin number 12 pole
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
