09300240307 | Harting

Bulkhead housing, size 24B, die-cast aluminum, longitudinal bow locking, IP65, 09300240307

Order No.: 42F610
EAN: 4099889746006
MPN:
09300240307
09 30 024 0307
Series: Han B
Harting
09300240307 Harting Housings for HDC Connectors Image 1
09300240307 Harting Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.0364 € *
Available: 2 pcs.
Leadtime: 6 Weeks **
Total Price:
28.04 € *
Price list
Quantity
Price per unit*
1 pcs.
28.0364 €
5 pcs.
26.3585 €
15 pcs.
25.3470 €
50 pcs.
24.2284 €
150 pcs.
23.2169 €
*incl. VAT plus shipping costs
**Subject to prior sale

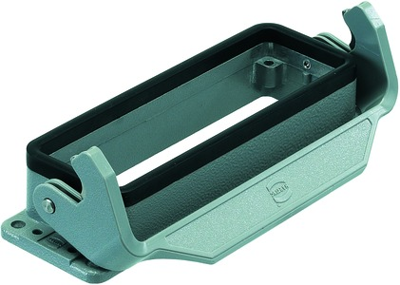

Bulkhead mounted housing, 09300240307, HARTING

Bulkhead mounted housing with single locking lever, material: aluminium die-cast, powder-coated.

Technical specifications
Version bulkhead housing
Shell size 24B
Shell Material die-cast aluminum
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
