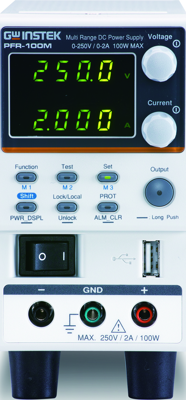

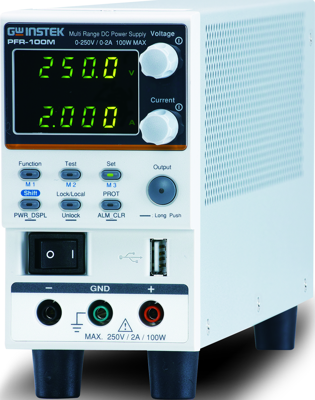

PFR-100MGP | GW Instek

Fanless Multi-Range DC Power Supply, PFR-100MGP, GW Instek

The PFR-100LGP, a small and high-performance programmable D.C. power supply, adopts natural convection design to dissipate heat. The fanless structure allows the user to focus on their experiment and test in a quiet environment. Fanless power supply will not suck in dust and foreign object, therefore, PFR-100MGP has a longer life cycle compared with that of a power supply with fan. The PFR-100MGP is a power supply with a five-fold rated power that allows the user to self-define voltage and current under rated power conditions so as to satisfy them with wider voltage and current operational range. PFR-100MGP, with rated 100W, provides two model: PFR-100MGP maximum output voltage of 250V (at 0.4A) or maximum output current of 2A (at 50V).

Features

• Constant Power Output for 5 Times Multi-range(V&I) Operation
• Natural Convection Cooling Design (Fanless Structure)
• Preset Memory Function
• Output ON/OFF Delay Function
• Adjustable Slew Rate For Voltage and Current
• Bleeder Circuit Control

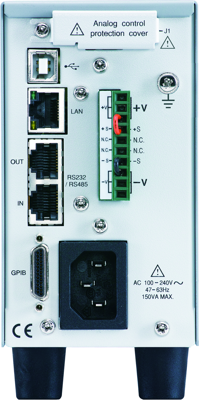

• Support Front and Rear Panel Output
• Web Server Monitoring and Control

Applications

• LED Module Test and Reliability Test
• Charging Test for Battery Cell
• DC/DC Converter Applications
• DC Motor Test Applications
• Solar Module Quality Test
