MESC-250M-01 | Fastron

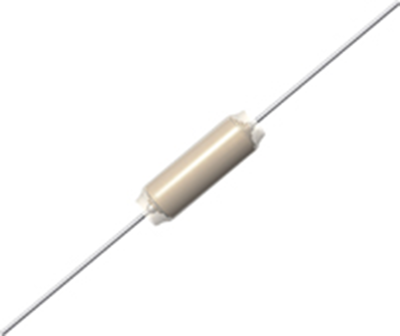

Suppressor choke, axial, 25 µH, 1.5 A, MESC-250M-01
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.9988 € *
Available in 4 Days: 580 pcs. - if ordered today
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
10 pcs.
2.7727 €
100 pcs.
2.6299 €
500 pcs.
2.4633 €
1000 pcs.
2.3562 €
*incl. VAT plus shipping costs
Subject to prior sale
Suppressor inductor, MESC-250M-01, FASTRON
The MESC-250M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.
Features
- High rated current
- Low DC resistance
Applications
- RF blocking, filtering and decoupling
- Entertainment devices
- Interference suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | suppressor choke | |
| Inductance | 25 µH | |
| DC current | 1.5 A | |
| Tolerance | ±20 % | |
| DC resistance | 408 mΩ | |
| Saturation current | 1.5 A | |
| Measuring frequency | 100 kHz | |
| Design | axial | |
| Length | 24 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
| Original Packaging | Reel with 1 piece |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
