1210F-331J-01 | Fastron
RF choke, SMD 1210, 330 µH, 85 mA, 1210F-331J-01
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 18 Weeks

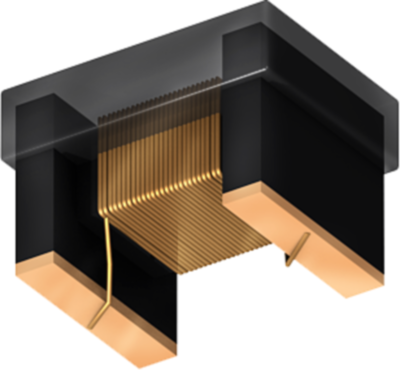

Chip inductor for RF applications, type Fastron 1210AS./1210F.
Size 1210, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ferrite carrier material, type 1210F.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 85 mA | |
| Measuring frequency | 796 kHz | |
| Length | 3.8 mm | |
| DC resistance | 14.1 Ω | |
| Inductance | 330 µH | |
| Height | 2.4 mm | |
| Design | SMD 1210 | |
| Quality Q | Q 23 | |
| Tolerance | ±5 % | |
| Width | 3 mm | |
| Version | RF choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
