1210F-180K-01 | Fastron

RF choke, SMD 1210, 18 µH, 270 mA, 1210F-180K-01

Order No.: 76D2961
EAN: 4099889042948
MPN:
1210F-180K-01
Series: 1210F
Fastron

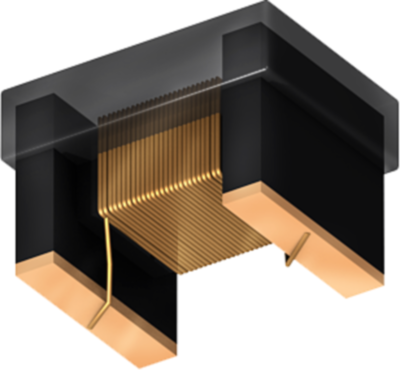

1210F-180K-01 Fastron Fixed Inductors Image 1
1210F-180K-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Available in 4 Days: 441 pcs.
Leadtime: 1 Week **
Total Price:
0.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
800 pcs.
0.4046 €

RF inductor, 1210F-180K-01, FASTRON

The 1210F-180K-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.

Applications

  • Oscillator and signal generators
  • Mobile telecommunication
  • Automotive Subsystems
  • Wireless communication
Technical specifications
Version RF choke
Design SMD 1210
Width 3 mm
DC current 270 mA
DC resistance 1.35 Ω
Quality Q Q 27
Height 2.4 mm
Inductance 18 µH
Length 3.8 mm
Tolerance ±10 %
Logistics
Country of origin MY
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 800 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
