1210F-220K-01 | Fastron

RF choke, SMD 1210, 22 µH, 260 mA, 1210F-220K-01

Order No.: 79D5687
EAN: 4099891561284
MPN:
1210F-220K-01
Series: 1210F
1210F-220K-01 Fastron Fixed Inductors
Image may differ
Unit Price (€ / pc.)
0.4760 € *
Available in 4 Days: 252 pcs. - if ordered today
Total Price:
380.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
0.4760 €

RF inductor, 1210F-220K-01, Fastron

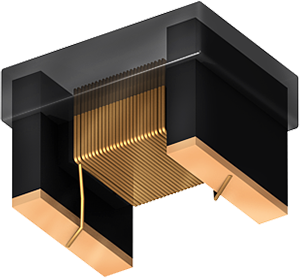

This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.

Applications

  • Mobile telecommunication
  • Automotive subsystems
  • Wireless communication
Technical specifications
Filter Property Value
Inductance 22 µH
DC current 260 mA
DC resistance 1.45 Ω
Design SMD 1210
Version RF choke
Quality Q Q 27
Width 3 mm
Height 2.4 mm
Tolerance ±10 %
Measuring frequency 2.52 MHz
Length 3.8 mm
Logistics
Property Value
Country of origin MY
Original Packaging Reel with 100 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
