FZT951TA | Diodes

Bipolar junction transistor, PNP, -5 A, -60 V, SMD, SOT-223, FZT951TA

Order No.: 24S2867
EAN: 4099879029461
MPN:
FZT951TA
Series: FZT

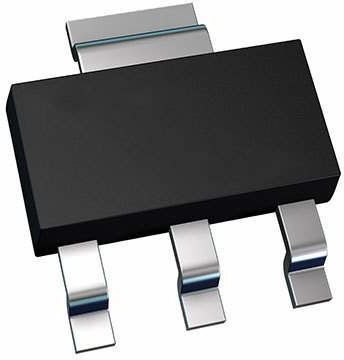

FZT951TA Diodes Bipolar Transistors Image 1

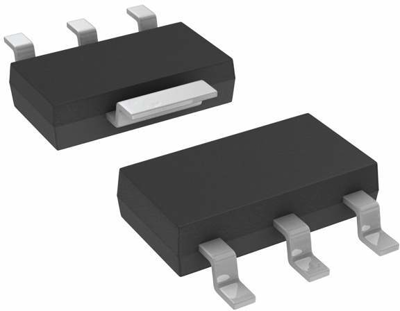

FZT951TA Diodes Bipolar Transistors Image 2
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
321.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.3213 €

PNP transistor, FZT951TA, DIODES

PNP medium power transistor in SOT223 case.

Features

  • Halogen and antimony free
  • RoHS Compliant
  • Qualified to AEC-Q101 standards for high reliability
Technical specifications
Filter Property Value
Version PNP
Assembly SMD
Min DC gain 100 mA
Enclosure SOT-223
Collector current -5 A
min. operating temperature -55 °C
Power dissipation 3 W
Transit frequency fTmin 120 MHz
Saturation voltage -460 mV
Max DC amplification 300 mA
max. operating temperature 150 °C
max.voltage between collector and base Vcbo -100 V
max.voltage between collector and emitter Vceo -60 V
Logistics
Property Value
Customs tariff number 85412900
Country of origin QU
Original Packaging Reel with 1,000 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
