FZT751TA | Diodes

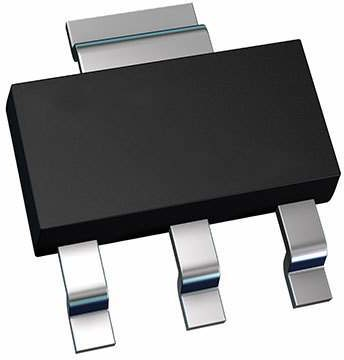

Bipolar junction transistor, PNP, -3 A, -60 V, SMD, SOT-223, FZT751TA
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
50 pcs.
1.1186 €
250 pcs.
1.1067 €
*incl. VAT plus shipping costs
Subject to prior sale
PNP transistor, FZT751TA, DIODES
PNP medium power transistor in SOT223 package.
Features
- Halogen and antimony free
- RoHS Compliant
Applications
- MOSFET and IGBT gate driving
- Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Transit frequency fTmin | 140 MHz | |
| Saturation voltage | -600 mV | |
| Min DC gain | 100 mA | |
| Enclosure | SOT-223 | |
| Collector current | -3 A | |
| Power dissipation | 3 W | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Version | PNP | |
| max.voltage between collector and emitter Vceo | -60 V | |
| max.voltage between collector and base Vcbo | -80 V | |
| Max DC amplification | 300 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
