FZT653TA | Diodes

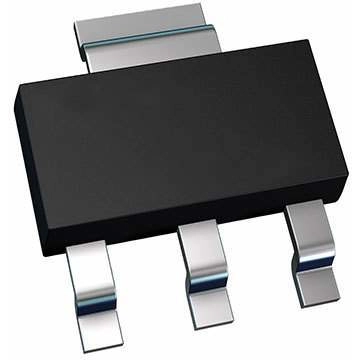

Bipolar junction transistor, NPN, 2 A, 100 V, SMD, SOT-223, FZT653TA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2404 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.24 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2404 €
25 pcs.
0.2261 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, FZT653TA, DIODES
NPN high performance transistor in SOT223 case.
Features
- Halogen and antimony free
- RoHS Compliant
- Qualified to AEC-Q101 standards for high reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-223 | |
| Version | NPN | |
| Saturation voltage | 500 mV | |
| Collector current | 2 A | |
| max.voltage between collector and emitter Vceo | 100 V | |
| max.voltage between collector and base Vcbo | 120 V | |
| Power dissipation | 3 W | |
| Transit frequency fTmin | 175 MHz | |
| Min DC gain | 100 mA | |
| Max DC amplification | 300 mA | |
| Rated current | 2 A | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
