FZT605TA | Diodes

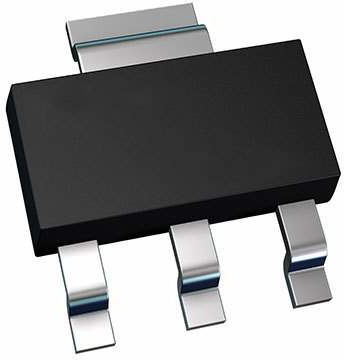

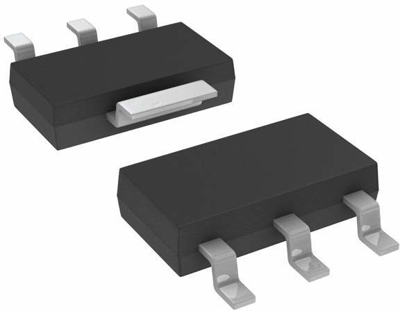

Bipolar junction transistor, NPN, 1.5 A, 120 V, SMD, SOT-223, FZT605TA
Order No.: 24S2855
EAN: 4099879029393
MPN:
FZT605TA
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
50 pcs.
0.3213 €
250 pcs.
0.2916 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, FZT605TA, DIODES
NPN Darlington transistor in SOT23 package.
Features
- Halogen and antimony free
- RoHS Compliant
Applications
- Lamp
- Relay
- Solenoid driving
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and emitter Vceo | 120 V | |
| max. operating temperature | 150 °C | |
| Collector current | 1.5 A | |
| Saturation voltage | 1.5 V | |
| Rated current | 1.5 A | |
| Min DC gain | 2000 mA | |
| min. operating temperature | -55 °C | |
| max.voltage between collector and base Vcbo | 140 V | |
| Enclosure | SOT-223 | |
| Assembly | SMD | |
| Power dissipation | 3 W | |
| Transit frequency fTmin | 150 MHz | |
| Version | NPN |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
