240KA | Aero-Motive
Balancer, 240KA, load capacity (min/max) 100 to 110 kg, stroke 1.8 m, without locking, 1301720124
Unit Price (€ / pc.)
2,031.6751 € *
Standard delivery time from the manufacturer is: 7 Weeks
Balancer, 1301720124, Aero-Motive

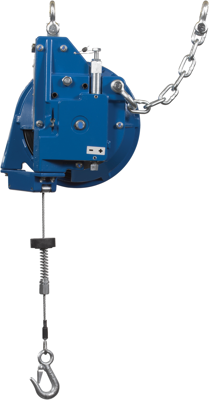

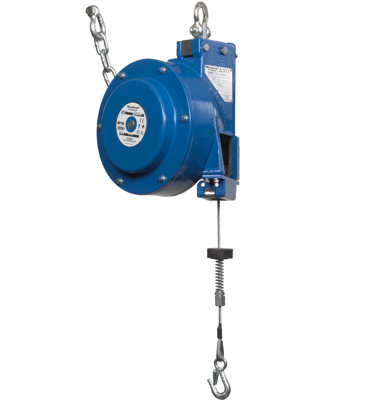

Aero-Motive Heavy Industrial Duty KA Balancer with Ratchet Lock, Weight Range 100.0-110.0 kg (221.0-243.0 lb), 1.80 m (6.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | aluminum | |
| Stroke | 1.8 m | |
| Min Load capacity | 100 kg | |
| Weight | 28 kg | |
| Rope Diameter | 4.76 mm | |
| Rope pullout | 2.1 m | |
| Manual locking | Yes | |
| Max Load capacity | 110 kg | |
| Spring fracture safety device | Yes | |
| Locking | without locking | |
| Product type | balancer | |
| Suspension Rope | galvanized | |
| Fall protection | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84253900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
