110KA | Aero-Motive

Balancer, 110KA, load capacity (min/max) 38 to 52 kg, stroke 2.1 m, without locking, 1301720026

Order No.: 12P6561
EAN: 4099891449773
MPN:
110KA
1301720026
Series: KA
Aero-Motive

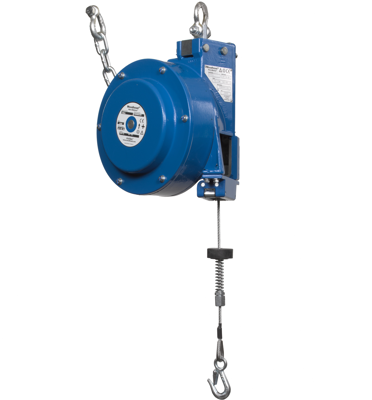

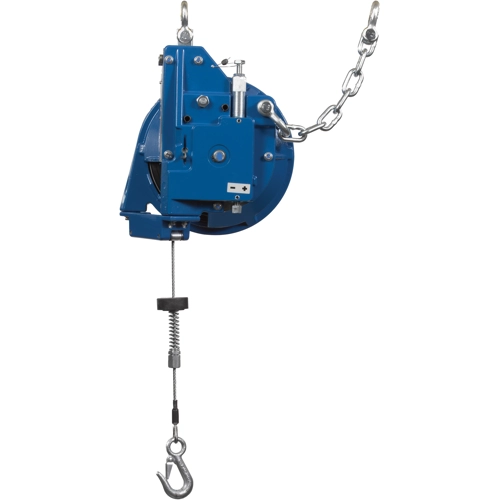

110KA Aero-Motive Spring Balancers Image 1
110KA Aero-Motive Spring Balancers Image 2
110KA Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
2,031.6751 € *
Available: 0 pcs.
Next delivery: 2 pcs. on 2024-09-20
Leadtime: 12 Weeks **
Total Price:
2,031.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,031.6751 €

Balancer, 1301720026, Aero-Motive

Aero-Motive Heavy Industrial Duty JA Balancer, Weight Range 38.0-52.0 kg (84.0-115.0 lb), 2.13 m (7.0') Travel

KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.

Technical specifications
Locking without locking
Version balancer
Shell Material aluminum
Weight 28 kg
Stroke 2.1 m
Rope Diameter 4.76 mm
Fall protection Yes
Spring fracture safety device Yes
Manual locking Yes
Rope pullout 2.1 m
Max Load capacity 52 kg
Min Load capacity 38 kg
Suspension Rope galvanized
Logistics
Country of origin DE
Customs tariff number 84253900
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
