192KA | Aero-Motive
Balancer, 192KA, load capacity (min/max) 79 to 91 kg, stroke 2.1 m, without locking, 1301720095
Unit Price (€ / pc.)
2,031.6751 € *
Standard delivery time from the manufacturer is: 31 Weeks
Balancer, 1301720095, Aero-Motive

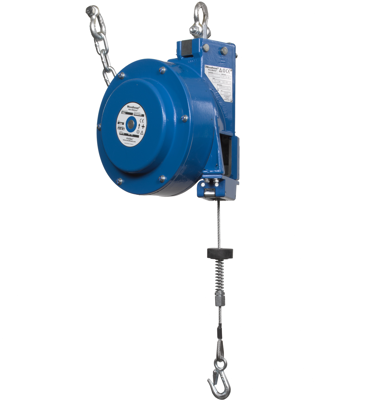

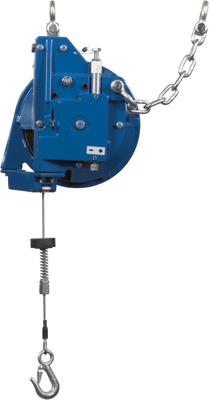

Aero-Motive Heavy Industrial Duty KA Balancer with Upper / Lower Bullard Hooks and Upper Shackle Assembly, Weight Range 79.0-91.0 kg (174.0-200.0 lb), 2.13 m (7.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max Load capacity | 91 kg | |
| Suspension Rope | galvanized | |
| Fall protection | Yes | |
| Product type | balancer | |
| Weight | 28 kg | |
| Min Load capacity | 79 kg | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Locking | without locking | |
| Rope Diameter | 4.76 mm | |
| Rope pullout | 2.1 m | |
| Shell Material | aluminum | |
| Stroke | 2.1 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84253900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
