190KA | Aero-Motive
Balancer, 190KA, load capacity (min/max) 79 to 88 kg, stroke 2.1 m, without locking, 1301720089
Unit Price (€ / pc.)
2,031.6751 € *
Standard delivery time from the manufacturer is: On Request

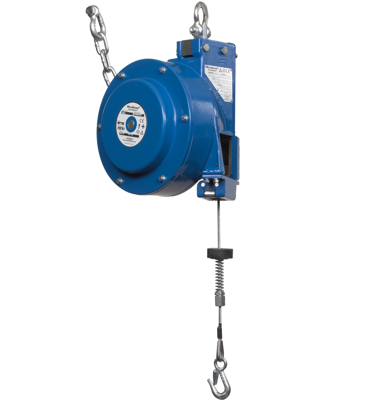

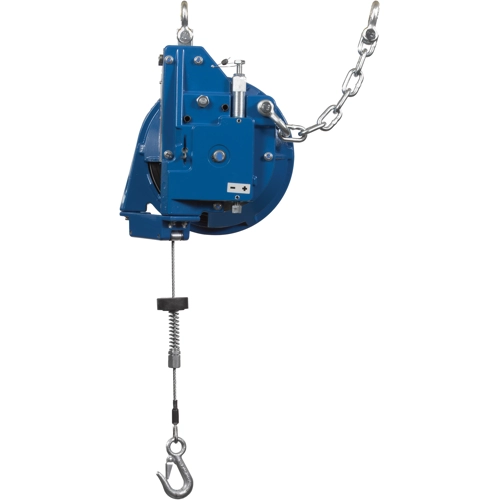

Balancer, 1301720089, Aero-Motive
Aero-Motive Heavy Industrial Duty KA Balancer, Weight Range 79.0-88.5 kg (175.0-195.0 lb), 2.13 m (7.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rope Diameter | 4.76 mm | |
| Rope pullout | 2.1 m | |
| Shell Material | aluminum | |
| Suspension Rope | galvanized | |
| Weight | 28 kg | |
| Spring fracture safety device | Yes | |
| Max Load capacity | 88 kg | |
| Min Load capacity | 79 kg | |
| Locking | without locking | |
| Manual locking | Yes | |
| Stroke | 2.1 m | |
| Product type | balancer | |
| Fall protection | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84253900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
