175KA | Aero-Motive

Balancer, 175KA, load capacity (min/max) 72 to 79 kg, stroke 2.1 m, without locking, 1301720-0788

Order No.: 23P6944
EAN: 4099891452278
MPN:
175KA
1301720-0788
Series: KA

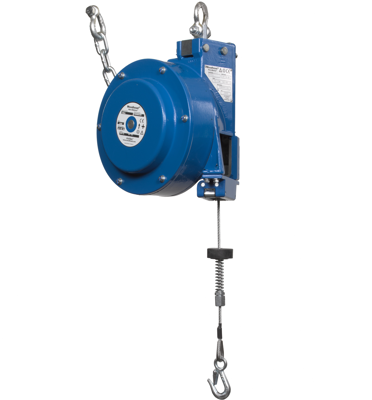

175KA Aero-Motive Spring Balancers Image 1

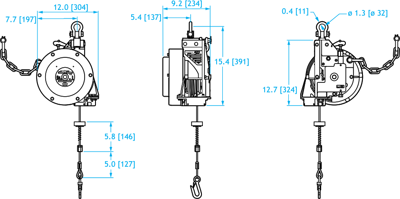

175KA Aero-Motive Spring Balancers Image 2

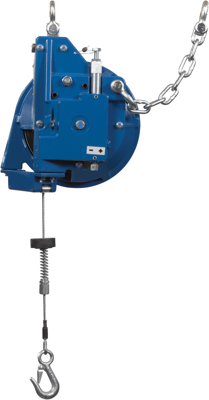

175KA Aero-Motive Spring Balancers Image 3
Image may differ
Unit Price (€ / pc.)
2,031.6751 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,031.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2,031.6751 €

Balancer, 1301720-0788, Aero-Motive

Aero-Motive Heavy Industrial Duty KA Balancer 175KA, Weight Range 72.0-79.0 kg

Balancers are devices designed to provide constant tension throughout the specified active cable travel. A true balance condition is achieved through precise power-spring tension control and a unique cable drum design which matches the torque build-up from the power spring.

Features

  • High-pressure Aluminum casted housings
  • Vertical tension +/- adjustment can be operated using off-the-shelf general tools
  • Equipped with Automatic Safety Lock
  • Unique roller cable guide
  • Unit supplied pre-fitted with safety chain
Technical specifications
Weight 28 kg
Fall protection Yes
Max Load capacity 79 kg
Manual locking Yes
Min Load capacity 72 kg
Stroke 2.1 m
Suspension Rope galvanized
Shell Material aluminum
Locking without locking
Version balancer
Spring fracture safety device Yes
Rope pullout 2.1 m
Logistics
Customs tariff number 84253900
Country of origin DE
Compliance
SVHC free not_specified
RoHS conform not_relevant
