170KA | Aero-Motive
Balancer, 170KA, load capacity (min/max) 72 to 79 kg, stroke 2.1 m, without locking, 1301720079
Unit Price (€ / pc.)
2,031.6751 € *
Standard delivery time from the manufacturer is: On Request

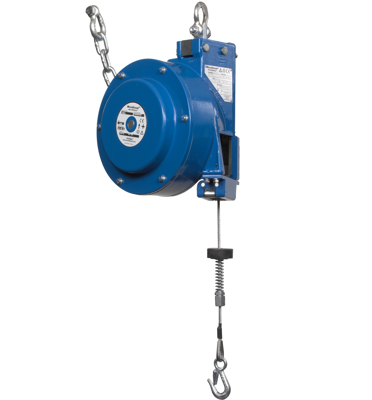

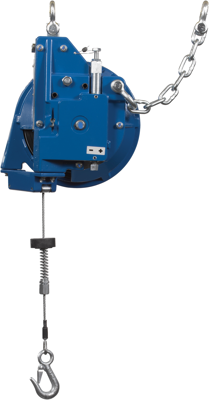

Balancer, 1301720079, Aero-Motive
Aero-Motive Heavy Industrial Duty KA Balancer, Weight Range 72.0-79.0 kg(159.0-175.0 lb), 2.10 m (6.89') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rope Diameter | 4.76 mm | |
| Fall protection | Yes | |
| Min Load capacity | 72 kg | |
| Max Load capacity | 79 kg | |
| Locking | without locking | |
| Suspension Rope | galvanized | |
| Weight | 28 kg | |
| Stroke | 2.1 m | |
| Product type | balancer | |
| Spring fracture safety device | Yes | |
| Manual locking | Yes | |
| Shell Material | aluminum | |
| Rope pullout | 2.1 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
