130KA | Aero-Motive
Balancer, 130KA, load capacity (min/max) 56 to 61 kg, stroke 2.1 m, without locking, 1301720042
Unit Price (€ / pc.)
2,031.6751 € *
Available: 7 pcs.

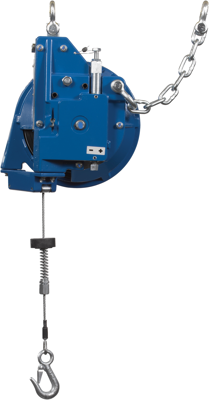

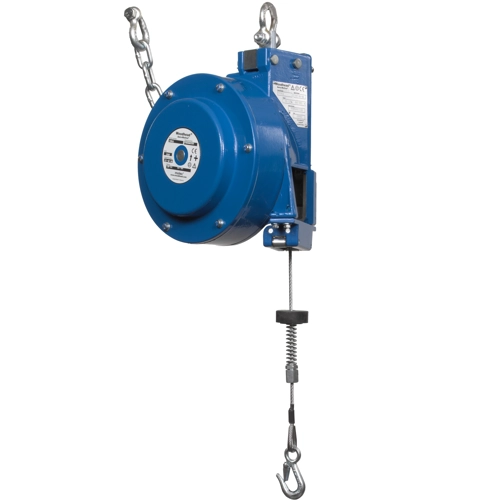

Balancer, 1301720042, Aero-Motive
Aero-Motive Heavy Industrial Duty KA Balancer, Weight Range 56.0-61.2 kg (125.0-135.0 lb), 2.13 m (7.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Fall protection | Yes | |
| Rope Diameter | 4.76 mm | |
| Spring fracture safety device | Yes | |
| Weight | 28 kg | |
| Locking | without locking | |
| Min Load capacity | 56 kg | |
| Shell Material | aluminum | |
| Manual locking | Yes | |
| Suspension Rope | galvanized | |
| Rope pullout | 2.1 m | |
| Product type | balancer | |
| Max Load capacity | 61 kg | |
| Stroke | 2.1 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
