110KA | Aero-Motive

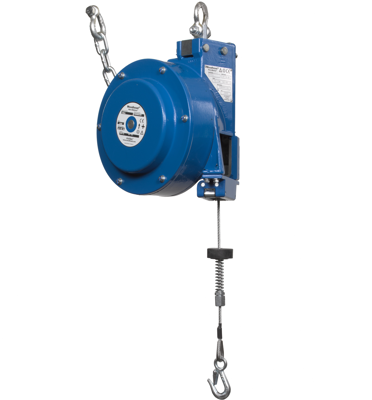

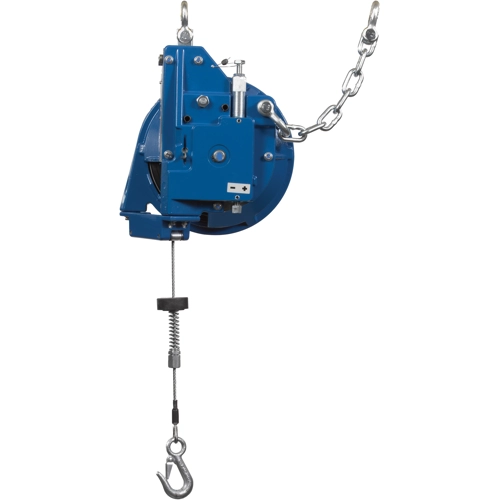

Balancer, 110KA, load capacity (min/max) 38 to 52 kg, stroke 2.1 m, without locking, 1301720026
Unit Price (€ / pc.)
2,031.6751 € *
Available: 8 pcs.
Balancer, 1301720026, Aero-Motive
Aero-Motive Heavy Industrial Duty JA Balancer, Weight Range 38.0-52.0 kg (84.0-115.0 lb), 2.13 m (7.0') Travel
KA balancers, equipped with two power springs, are the workhorses for the heavy industrial tools weighing up to 240 lb [110 kg]. Automatic Safety Lock system is a Power Based System which triggers on power loss from any of the two power springs. The Safety Lock system can be easily adjusted and fully tested by qualified personnel to meet desired Safety Lock expectations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rope Diameter | 4.76 mm | |
| Stroke | 2.1 m | |
| Product type | balancer | |
| Weight | 28 kg | |
| Min Load capacity | 38 kg | |
| Max Load capacity | 52 kg | |
| Locking | without locking | |
| Manual locking | Yes | |
| Shell Material | aluminum | |
| Fall protection | Yes | |
| Rope pullout | 2.1 m | |
| Spring fracture safety device | Yes | |
| Suspension Rope | galvanized |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84253900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
