645 840 55 | Werma

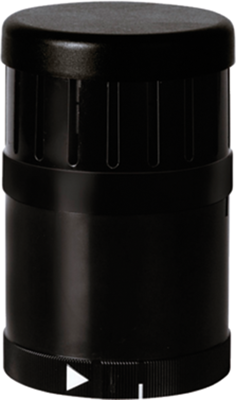

Voice output element, 88 dB, 24 VDC, 400 mA, black, 645 840 55
Unit Price (€ / pc.)
227.2424 € *
Standard delivery time from the manufacturer is: 2 Weeks
Voice output elements for KombiSIGN 71, type 645.
For playback of custom audio files in MP3 format (sounds, melodies, speech), can be programmed on the PC by means of USB cable (included in the scope delivery); Housing: PC. Operating voltage: 24 VDC, total recording time: 60 min., sequences: 15, current consumption: 400 mA, number of additional signal elements: max. 3. Degree of protection: IP 65. Operating temperatures: –20 to +50 °C.
Technical attributes (type, version, color, with/without lamp): 645.840.55, voice output element
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | speech module | |
| Sound pressure level | 88 db | |
| Voltage | 24 VDC | |
| Rated current | 400 mA | |

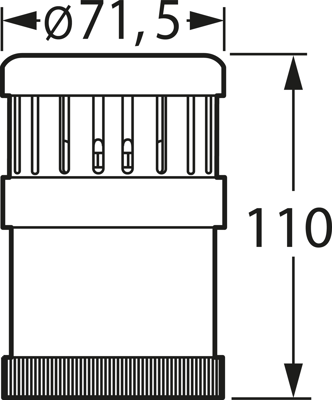

| Installation diameter | 70 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
