2734150000 | Weidmüller

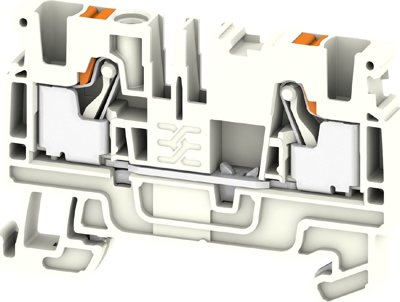

Protective conductor terminal, push-in connection, 0.14-6.0 mm², 2 pole, 8 kV, white, 2734150000
Unit Price (€ / pc.)
4.0817 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.7961 €
50 pcs.
3.5462 €
100 pcs.
3.3201 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal, 2734150000, Weidmüller
Feed-through terminal, PUSH IN, 4 mm², white.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Length | 39.5 mm | |
| Number of terminals | 2 | |
| Height | 60 mm | |
| Colour | white | |
| Rated surge voltage | 8 kV | |
| Width | 6.1 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Pin number | 2 pole | |
| Version | protective conductor terminal | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.14-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
