2490440000 | Weidmüller
Protective conductor terminal, push-in connection, 0.5-16 mm², 2 pole, 8 kV, green/yellow, 2490440000
Unit Price (€ / pc.)
5.6168 € *
Available in 6 Days: 125 pcs. - if ordered today
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6168 €
10 pcs.
5.2479 €
50 pcs.
4.9147 €
100 pcs.
4.6291 €
*incl. VAT plus shipping costs
Subject to prior sale

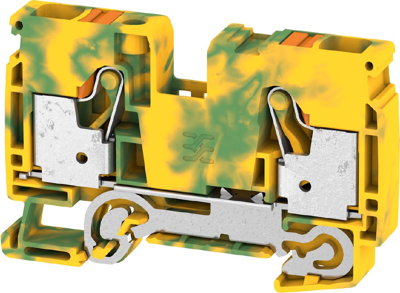

Protective conductor terminal block, 2490440000, Weidmüller
PE terminal, PUSH IN, 10 mm², Green/yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green/yellow | |
| Number of terminals | 2 | |
| Width | 10 mm | |
| Connection | push-in connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 18 to 6 | |
| Pin number | 2 pole | |
| Rated Voltage | 1000 V | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.5-16 mm² | |
| Height | 80.5 mm | |
| Length | 51.5 mm | |
| Rated surge voltage | 8 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
