1793810000 | Weidmüller
Pin header, 4 pole, pitch 3.81 mm, straight, green, 1793810000
Order No.: 50P0017
EAN: 4032248230938
MPN:
1793810000
SC 3.81/04/180F 3.2SN GN BX
Unit Price (€ / pc.)
1.8207 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.6541 €
50 pcs.
1.5708 €
100 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

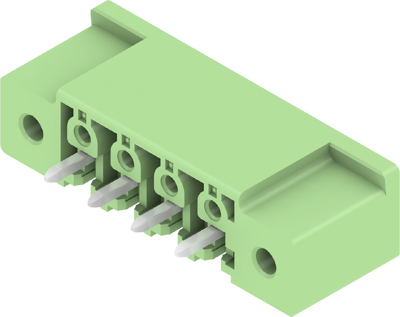

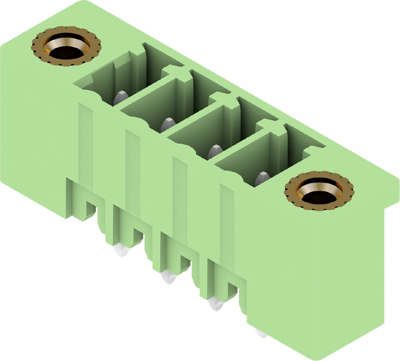

PCB plug-in connector, 1793810000, Weidmüller
PCB plug-in connector, male header, Flange, THT solder connection, 3.81 mm, Number of poles: 4, 180°, Solder pin length (l): 3.2 mm, tinned, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17.5 A | |
| Version | pin header | |
| Number of rows | 1 | |
| Connection | solder connection | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Pin number | 4 pole | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Type of locking | No | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
