1618940000 | Weidmüller
Pin header, 20 pole, pitch 3.5 mm, straight, black, 1618940000
Order No.: 50P0382
EAN: 4008190130398
MPN:
1618940000
SL 3.50/20/180F 4.5 SN BK BX
Unit Price (€ / pc.)
6.2356 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
6.24 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2356 €
10 pcs.
5.6049 €
50 pcs.
5.2598 €
100 pcs.
4.9504 €
*incl. VAT plus shipping costs
Subject to prior sale

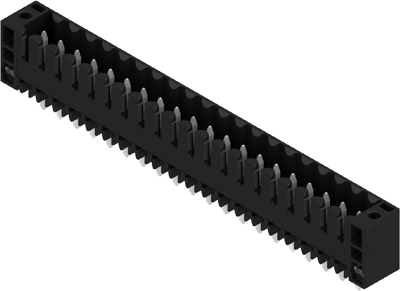

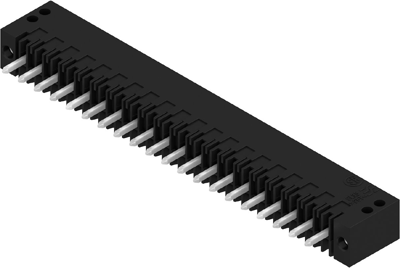

PCB plug-in connector, 1618940000, Weidmüller
PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 20, 180°, Solder pin length (l): 4.5 mm, tinned, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 17 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Orientation | straight | |
| Rated voltage | 320 V | |
| Connection | solder connection | |
| Pin number | 20 pole | |
| Version | pin header | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
