1503860000 | Weidmüller

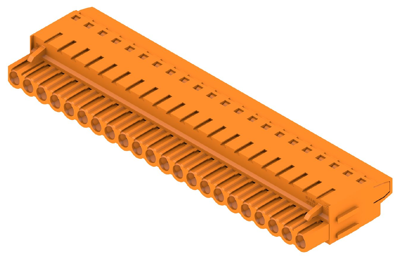

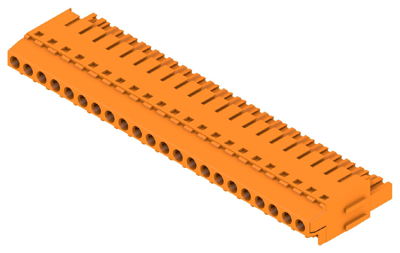

Socket header, 22 pole, pitch 5.08 mm, straight, orange, 1503860000
Order No.: 50P5068
EAN: 4008190012434
MPN:
1503860000
BLT 5.08HC/22/180B SN OR BX
Unit Price (€ / pc.)
31.1304 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
31.13 € *
Price list
Quantity
Price per unit*
1 pcs.
31.1304 €
10 pcs.
29.1907 €
25 pcs.
27.4771 €
50 pcs.
25.9420 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1503860000, Weidmüller
Female plug with TOP screw connection system for connecting a wire with a straight 180° outlet direction. The female connector provides space for labelling and can be coded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Orientation | straight | |
| Connection | clamp connection | |
| Contact type | socket | |
| Rated current | 27 A | |
| Version | socket header | |
| Pin number | 22 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | orange | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
