1423900000 | Weidmüller

Receptacle, 0.34-0.5 mm², AWG 22-20, crimp connection, tin-plated, 1423900000

Order No.: 51P3151
EAN: 4008190008659
MPN:
1423900000
CB1,6E22-20 SN I1,8
Series: CB

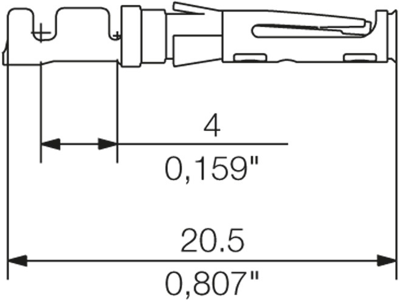

1423900000 Weidmüller Crimp Contacts Image 1
1423900000 Weidmüller Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0353 €

Socket contact, 1423900000, Weidmüller

The 1423900000 is a socket contact. This product enables custom adaptations to the specific requirements of your applications.

Features

  • Safe centring of the contacts using the three-segment pin tips
  • High contact reliability using four defined contact points
  • Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
  • Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
Contact connection crimp connection
Cable cross-section 0.34-0.5 mm²
AWG cross-section AWG 22-20
contact surface tin-plated
Contact material brass
Insulation diameter 1.1-1.8 mm
Version receptacle
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
