1421900000 | Weidmüller
Receptacle, 0.14-0.25 mm², AWG 26-24, crimp connection, tin-plated, 1421900000
Order No.: 51P3093
EAN: 4008190051600
MPN:
1421900000
CB1,6E26-24 SN I1,4
Unit Price (€ / pc.)
1.0353 € *
Available: 0 pcs.
Available in 6 Days: 1,250 pcs.
Leadtime: On Request **

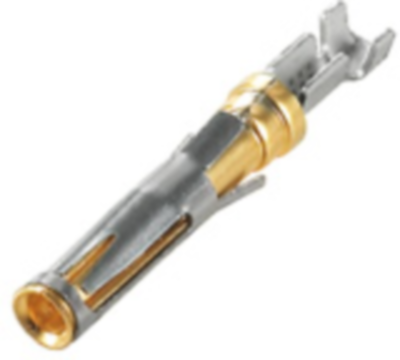

Socket contact, 1421900000, Weidmüller
The 1421900000 is a socket contact. This product enables custom adaptations to the specific requirements of your applications.
Features
- Safe centring of the contacts using the three-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 26-24 | |
| Insulation diameter | 0.8-1.4 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| contact surface | tin-plated | |
| Cable cross-section | 0.14-0.25 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
