1423800000 | Weidmüller

Receptacle, 0.34-0.5 mm², AWG 22-20, crimp connection, tin-plated, 1423800000

Order No.: 51P3144
EAN: 4008190059422
MPN:
1423800000
CB1,6R22-20 SN I1,8
Series: CB
Weidmüller

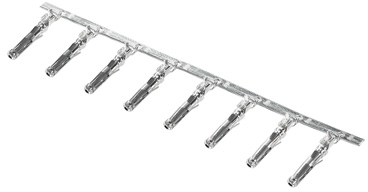

1423800000 Weidmüller Crimp Contacts Image 1

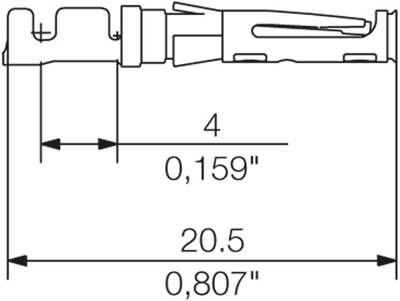

1423800000 Weidmüller Crimp Contacts Image 2
1423800000 Weidmüller Crimp Contacts Image 3
Image may differ
Unit Price (€ / pc.)
0.6307 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
0.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.6307 €

Socket contact, 1423800000, Weidmüller

The 1423800000 is a socket contact. This product enables custom adaptations to the specific requirements of your applications.

Features

  • Safe centring of the contacts using the three-segment pin tips
  • High contact reliability using four defined contact points
  • Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
  • Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
Version receptacle
AWG cross-section AWG 22-20
Insulation diameter 1.1-1.8 mm
Contact connection crimp connection
Contact material brass
contact surface tin-plated
Cable cross-section 0.34-0.5 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
