221-422 | WAGO
Connection clamp, 2 pole, 4.0 mm², clamping points: 2, transparent, cage clamp, 32 A
Unit Price (€ / pc.)
0.5355 € *
Available: 0 pcs.
Leadtime: 1 Week **

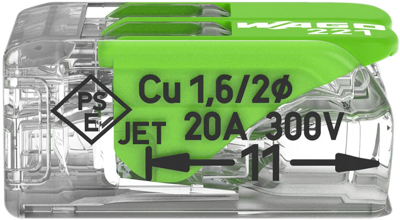

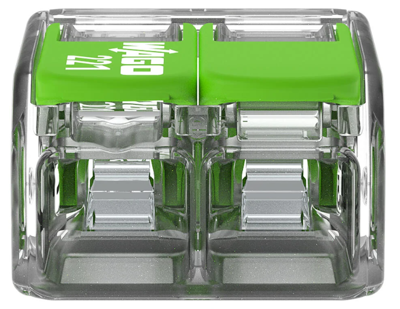

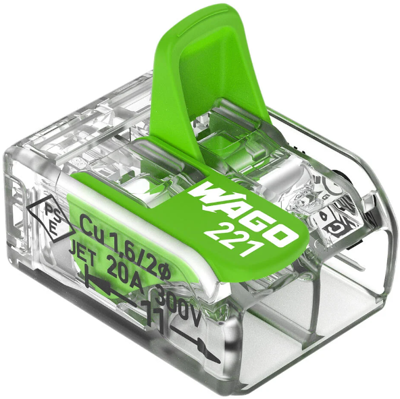

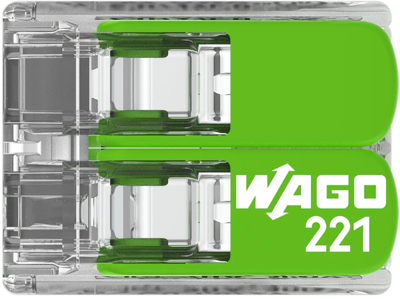

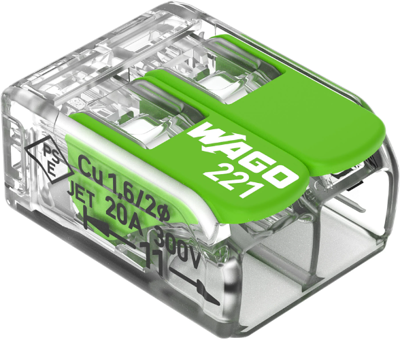

Splicing connector, 221-422, WAGO
Splicing connector with levers green range for all conductor types, max. 4 mm², 2-conductor, transparent housing, Surrounding air temperature: max 85°C, 4,00 mm².
Features
- Plastics made partially from post-consumer recycled material (such as recycled PET bottles) and bio-based recyclables from industrial and household use
- Reduced consumption of fossil resources
- Ease of use - pull the lever up, insert a conductor and push the lever back down
- Connect solid, stranded and fine-stranded conductors
- Time savings for installers and device manufacturers
- Quickly install devices with higher power consumption
- Safely install long cable runs with larger conductor cross sections
- Mounting carrier for installation conforms to standards
Technical specifications
| Connection | cage clamp | |
| Number of terminals | 2 | |
| Version | Through connector | |
| AWG cross-section | AWG 12 | |
| Colour | transparent | |
| Cable cross-section | 4.0 mm² | |
| Rated current | 32 A | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
