726-611 | WAGO

Common potential matrix patchboard, Marking 1-24,1 input module incl. end plate, 19"racks, 2,50mm²

Order No.: 45P8031
EAN: 4055143628686
MPN:
726-611
Series: 726

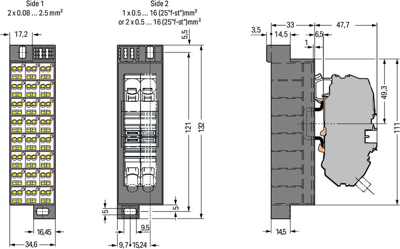

726-611 WAGO Series Terminals Image 1

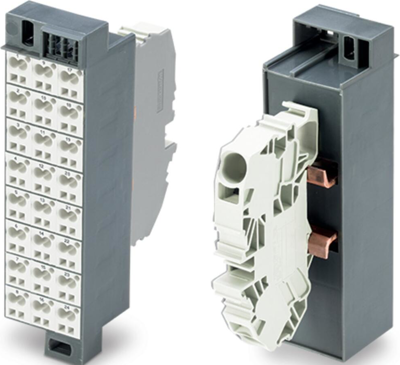

726-611 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
90.7851 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
90.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
90.7851 €

Common potential matrix patchboard, 726-611, WAGO

This common potential matrix patchboard simplifies electrical installation. Conductors should only be connected to this common potential matrix patchboard if their strip length is between 8 mm and 10 mm. This product features a conductor terminal and utilizes CAGE CLAMP as well as Push-in CAGE CLAMP. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. Our highly-rated and maintenance-free CAGE CLAMP connection makes it easy to connect all types of conductors without having to prepare the conductor. The dimensions are 34.6 x 132 x 84.2 mm (width x height x depth). Depending on the type of conductor, this common potential matrix patchboard is ideal for conductor cross sections ranging from 0.08 mm² to 2.5 mm² on one side and for conductor cross sections from 0.2 mm² to 16 mm² on the other side. The dark gray housing is made of polyamide (PA66) for insulation. Rated current: according to IEC/EN 24 A, according to IEC/EN 2 76 A.

Technical specifications
Filter Property Value
Number of terminals 2
Height 132 mm
Colour dark gray/white
Cable cross-section 0.08-2.5 mm²/0.02-16 mm²
Version potential block
AWG cross-section AWG 24 to 6/AWG 28 to 14
Width 34.6 mm
Length 84.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
